Product features:

1. The internal positioning locking fixture adopts pneumatic zero point positioning, with a repetition accuracy of within 0.005mm. It is locked when the air is cut off and opened when the air is ventilated, with a locking force of 3 tons;
2. The tray adopts an equidistant positioning hole design, which is suitable for quick clamping and positioning of various types of fixtures.

Automatic dual station external exchange workbench

The automatic tray changer includes:
1. Series 16A, 227 kg capacity (evenly distributed weight) pneumatic blower receiver.
2. 22 inch x 14 inch x 1 inch (558.8 mm x 355.6 mm x 25.4mm mm) end loaded cast aluminum tray.
1 series 16 end loading shuttle unit with automatic doors and indicator lights.
(Price does not include installation, transportation, handling, and all taxes and fees)

Product features:

-When the spare tray is in the machine, load, unload, inspect parts, and set up operations.
-By using tools specifically for pallets, the setup time for repetitive tasks is reduced.
-Replace the tray in seconds with a repeatability of+/-0.0025 mm.
-Pallets are easily interchangeable between machines or departments.
-Fully integrated with CNC machine tools through the use of two M-functions.
-Heavy/large workpieces are easy to load outside the machine.
-Single shuttle system with a capacity of up to 3636 kilograms*
-Dual shuttle system with a capacity of up to 14528 kilograms*
-Work can easily be interrupted due to emergencies.
-Improve the productivity of machines and operators.
-Equipped with Mitsubishi control devices.
*Uniform distribution of part weight

The most advanced versatility:

●PLC is fully integrated with the machine.
●When the backup tray is on the machine, the operator sets the next tray. After being ready, the operator presses the “Tray Ready” button (A) and leaves to participate in other activities. When the tray is completed in the machine, the next tray is automatically fed in.
●PLC allows operators to program pallet acceleration and deceleration to optimize performance based on the weight of the fixture
(A) The cast iron receiver is directly installed on the machine tool workbench.
● (B) Hardening and grinding positioning pins to ensure
+/-0.0001 inch (. 0025 mm) repeatability.
● (C) Patented “dual air impact” blows air through and across the contact pad to remove the chip.

Side Door Automatic CNC Pallet Changer System最先出現在SYRS。

Product features:
1. The internal positioning locking fixture adopts pneumatic zero point positioning, with a repetition accuracy of within 0.005mm. It is locked when the air is cut off and opened when the air is ventilated, with a locking force of 3 tons;
2. The tray adopts an equidistant positioning hole design, which is suitable for quick clamping and positioning of various types of fixtures.

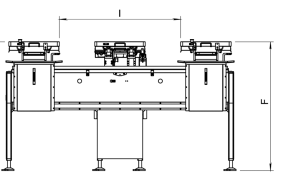

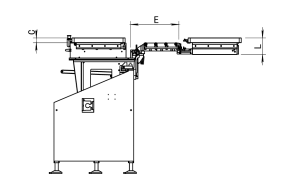

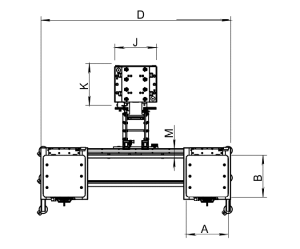

Manual dual station external exchange workbench?

The manual tray replacement system unleashes the full production potential of vertical machining centers, whether you have a large factory or the smallest workshop space. Regardless of the niche or specific processing application in your industry, manual tray replacement devices can significantly improve productivity without requiring additional operator input.
Shenyong Intelligence has always been a leader in manufacturing efficiency, collaborating with thousands of enterprises, saving a lot of work costs, time, operator labor, and spindle downtime, achieving annual profit growth of over a year. Using our manual tray replacement system, operators can easily replace trays within seconds.

Selection of manual tray quick change device system and options

We can modify the manual tray replacement system to almost any type of machine, providing various systems and designs:
● Micro tray system manual lift off
● Pneumatic air lifting system
● Front mounted shuttle tray system
● ‘Receiver and Tray Only’ system

Manual Horizontal CNC Pallet Changer System最先出現在SYRS。

Product features:

1. The internal positioning locking fixture adopts pneumatic zero point positioning, with a repetition accuracy of within 0.005mm. It is locked when the air is cut off and opened when the air is ventilated, with a locking force of 3 tons;
2. The tray adopts an equidistant positioning hole design, which is suitable for quick clamping and positioning of various types of fixtures.

Automatic dual station external exchange workbench

The automatic tray changer includes:
1. Series 16A, 227 kg capacity (evenly distributed weight) pneumatic blower receiver.
2. 22 inch x 14 inch x 1 inch (558.8 mm x 355.6 mm x 25.4mm mm) end loaded cast aluminum tray.
1 series 16 end loading shuttle unit with automatic doors and indicator lights.
(Price does not include installation, transportation, handling, and all taxes and fees)

Product features:

-When the spare tray is in the machine, load, unload, inspect parts, and set up operations.
-By using tools specifically for pallets, the setup time for repetitive tasks is reduced.
-Replace the tray in seconds with a repeatability of+/-0.0025 mm.
-Pallets are easily interchangeable between machines or departments.
-Fully integrated with CNC machine tools through the use of two M-functions.
-Heavy/large workpieces are easy to load outside the machine.
-Single shuttle system with a capacity of up to 3636 kilograms*
-Dual shuttle system with a capacity of up to 14528 kilograms*
-Work can easily be interrupted due to emergencies.
-Improve the productivity of machines and operators.
-Equipped with Mitsubishi control devices.
*Uniform distribution of part weight

The most advanced versatility:

●PLC is fully integrated with the machine.
●When the backup tray is on the machine, the operator sets the next tray. After being ready, the operator presses the “Tray Ready” button (A) and leaves to participate in other activities. When the tray is completed in the machine, the next tray is automatically fed in.
●PLC allows operators to program pallet acceleration and deceleration to optimize performance based on the weight of the fixture
(A) The cast iron receiver is directly installed on the machine tool workbench.
● (B) Hardening and grinding positioning pins to ensure
+/-0.0001 inch (. 0025 mm) repeatability.
● (C) Patented “dual air impact” blows air through and across the contact pad to remove the chip.

Front Door Automatic CNC Pallet Changer System最先出現在SYRS。

Information management system最先出現在SYRS。

One-to-two truss manipulator最先出現在SYRS。

Multi-station rotary automatic silo最先出現在SYRS。

Multi-station rotary automatic silo最先出現在SYRS。

1. The equipment operates fully automatically, and no worker is required to operate each machine tool;

2. It replaces the high-intensity work of workers and has higher production efficiency;

3. The robot has 7-axis movement, which is more flexible and has higher degrees of freedom than the truss;

4. Fully automatic machining, higher parts qualification rate, and better quality;

5. One robot loads and unloads three machine tools, saving labor costs.

Machine tool loading and unloading production line最先出現在SYRS。

The processing system realizes the processing of machine tool parts, the logistics system realizes material transportation, the post-processing system completes the processing particle cleaning function of the parts, the joint robot realizes manual loading and unloading, and the machine tool protection ensures the safety of the operator. Finally, the bus system collects production data and sends it to the management platform to realize remote online management functions.

The main equipment includes precision CNC lathes, special-shaped external cylindrical lathes (with precision machining linear modules), machining centers, boring machines, piston multi-hole drills, and cleaning machines. More than 80% of them are non-standard machine tools developed by our company.
